Description
Product Overview

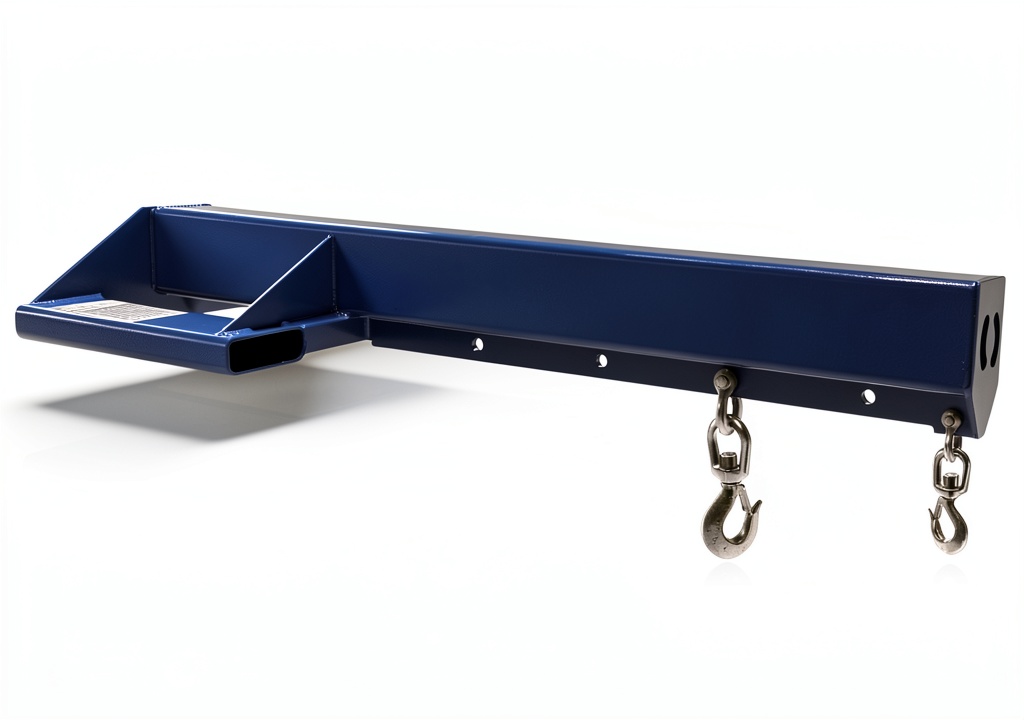

Designed for demanding industrial environments, the Vestil LM-EBNT-8-36 lift boom converts a standard forklift into a versatile overhead crane without the need for additional hydraulic systems. Constructed from high‑grade structural steel, the boom offers exceptional strength and resistance to wear, ensuring a long service life even under continuous heavy‑load cycles. Its 36‑inch (91 cm) non‑telescoping design eliminates the complexity of extending sections, providing a rigid, stable platform that reduces sway and improves load control. The boom’s blue and yellow color scheme enhances visibility on busy shop floors, helping operators quickly identify the equipment and maintain safe clearances. With a rated capacity of 8,000 lb (3,629 kg), the LM‑EBNT‑8‑36 can handle a wide range of materials, from pallets and drums to bulky components, making it an ideal solution for warehouses, manufacturing plants, and construction sites. The integrated fork pockets feature a reinforced safety chain that secures the boom to the forklift’s forks, delivering a reliable connection that meets industry safety standards. Additionally, the boom includes two heavy‑duty lifting hooks, each capable of supporting the full rated capacity, allowing operators to lift, position, and lower loads with precision. The compact footprint of 80.38 × 44 × 11.5 in (204 × 112 × 29 cm) and a weight of 462 lb (210 kg) enable easy installation on most standard forklift models without extensive modifications. Compatibility with most 4‑wheel and 3‑wheel forklift models means the boom can be deployed across a fleet, reducing capital expense while increasing operational flexibility for businesses seeking to maximize equipment utilization. The straightforward attachment process requires only basic tools and can be completed in under thirty minutes by trained personnel.
Engineering the LM‑EBNT‑8‑36 involved rigorous testing to meet ANSI/ITSB standards for forklift‑mounted lifting devices, ensuring that every component performs reliably under real‑world conditions. The boom’s solid‑welded joints and reinforced gusset plates distribute loads evenly, minimizing stress concentrations that could lead to fatigue failure. Its non‑telescoping architecture eliminates moving parts, which not only reduces maintenance requirements but also provides a predictable load path that enhances operator confidence during precise positioning tasks. The dual‑hook system is engineered with a 10 mm safety factor, offering an additional margin of security when handling irregularly shaped or off‑center loads. Integrated safety chain loops are positioned to prevent accidental disengagement, and the fork pockets are machined to exact tolerances, guaranteeing a snug fit that resists slippage even on uneven terrain. The boom’s finish combines a high‑visibility yellow primer with a durable blue topcoat, delivering corrosion resistance and easy cleaning in dusty or wet environments. Optional accessories such as swivel adapters and additional chain links allow customization for specialized applications, while the standard configuration provides a ready‑to‑use solution that can be deployed immediately after installation. Maintenance guidelines recommend periodic visual inspections of welds, bolts, and safety chains, as well as lubrication of the hook pins to preserve smooth operation. By adhering to these best practices, users can achieve a service life well beyond the typical five‑year benchmark for comparable lifting equipment.
Installation of the LM‑EBNT‑8‑36 is straightforward and can be completed by a single technician with basic hand tools. The process begins with positioning the boom over the forklift’s fork carriage, aligning the pre‑drilled holes in the fork pockets with the forklift’s fork tines. Once aligned, the safety chain is looped through the designated eyelets and tightened to the manufacturer‑specified torque, creating a lock‑in that prevents movement during operation. The two lifting hooks are then affixed to the load using standard shackles, and the system is ready for use after a brief visual inspection. For applications that demand additional flexibility, Vestil offers optional swivel adapters that allow the boom to rotate up to 90 degrees, as well as extra chain links for extended reach. These accessories can be installed without modifying the core boom structure, preserving the integrity of the original design while expanding its functional capabilities. All components are marked with clear identification tags, simplifying inventory management and ensuring that replacement parts are readily identifiable.
Usage
In everyday operations, the Vestil lift boom excels in environments where space constraints limit the use of traditional overhead cranes. Warehouse operators can attach the boom to a standard forklift and quickly lift pallets from ground level to mezzanine heights, streamlining order fulfillment and reducing the need for separate material‑handling equipment. The 36‑inch reach is sufficient for most aisle widths, allowing the boom to maneuver between shelving units without obstructing traffic flow. Because the boom does not rely on hydraulic power, it can be used in facilities where power sources are limited or where hydraulic leaks pose a safety concern. Its robust construction enables it to withstand the rigors of construction sites, where rough handling, exposure to moisture, and temperature fluctuations are common. Workers can employ the boom to lift concrete forms, steel beams, and large tools, positioning them accurately for installation or maintenance tasks. The intuitive design, featuring clearly marked hook points and color‑coded safety chains, reduces the learning curve for new operators, promoting safe and efficient use across a diverse workforce.
Beyond warehouse and construction settings, the LM‑EBNT‑8‑36 is well suited for manufacturing plants that require flexible lift solutions on the production floor. Assembly lines can benefit from the ability to raise components to ergonomic heights, decreasing worker fatigue and improving throughput. The boom’s 8,000‑lb capacity accommodates heavy machinery parts, motor assemblies, and bulk raw materials, making it a versatile tool for a range of industries including automotive, aerospace, and food processing. When paired with a forklift equipped with a load‑center adjustment, the system maintains optimal balance, preventing tip‑over risks even when handling asymmetrical loads. Operators can also use the boom for maintenance activities such as changing filters, accessing overhead panels, or repositioning equipment for cleaning. The non‑telescoping nature ensures that the boom remains stable during these tasks, providing a steady platform that minimizes vibration and enhances precision. Overall, the lift boom’s adaptability, combined with its straightforward attachment method, empowers businesses to maximize existing forklift assets while expanding their material‑handling capabilities.
Safety considerations are integral to the effective use of the lift boom. Operators should always verify that the load is centered within the hook’s capacity envelope and that the combined weight of the load and boom does not exceed the forklift’s rated load center. Prior to each shift, a quick check of the safety chain tension, hook pins, and fork pocket bolts is recommended to detect any signs of wear or loosening. Personal protective equipment, including hard hats, safety glasses, and steel‑toe footwear, should be worn at all times when the boom is in operation. In environments with limited overhead clearance, the non‑telescoping nature of the boom provides a predictable profile, allowing operators to plan lift paths that avoid collisions with ceiling fixtures or other equipment. Training programs that emphasize proper load handling techniques, such as maintaining a low center of gravity and avoiding sudden directional changes, further reduce the risk of accidents and extend the service life of both the boom and the forklift.
Why Choose Us
Choosing Vestil as your supplier means partnering with a company that has over three decades of experience in designing and manufacturing material‑handling solutions for demanding industrial applications. Our commitment to quality is reflected in the use of premium‑grade steel, precision welding techniques, and thorough testing procedures that exceed industry benchmarks. Each lift boom undergoes a comprehensive inspection process, including load testing at 125 % of the rated capacity, to verify structural integrity and safety performance before it leaves the factory. This rigorous approach minimizes the risk of unexpected failures and provides peace of mind to end‑users who rely on the equipment for critical operations. Additionally, Vestil offers a responsive customer support network that can assist with installation guidance, troubleshooting, and parts replacement, ensuring that your investment remains productive throughout its lifecycle.
Our after‑sales service includes a detailed user manual, on‑line resources such as instructional videos, and a warranty that covers manufacturing defects for two years from the date of purchase. For customers requiring extended coverage, we provide optional service contracts that include regular maintenance visits, priority parts shipping, and on‑site technical assistance. By selecting Vestil, you benefit from a proven track record of reliability, a comprehensive support infrastructure, and a product portfolio that is continuously refined based on feedback from real‑world users. This dedication to continuous improvement translates into equipment that not only meets but often exceeds the evolving demands of modern material‑handling environments.
Vestil is also committed to environmental responsibility by incorporating sustainable manufacturing practices into the production of the LM‑EBNT‑8‑36. The steel used in the boom is sourced from suppliers that adhere to recycled‑material standards, reducing the overall carbon footprint associated with raw material extraction. Energy‑efficient welding processes and waste‑minimization programs are employed at our facilities, ensuring that each unit is produced with minimal environmental impact. Customers benefit from this approach not only through a greener product but also through potential cost savings, as the use of recycled steel can lower material expenses without compromising performance. Moreover, the design’s longevity reduces the frequency of replacement, further decreasing waste and supporting circular‑economy principles. By selecting a lift boom that aligns with both operational and sustainability goals, businesses can demonstrate corporate responsibility while achieving superior material‑handling efficiency.
Key Features
- High‑grade structural steel construction delivers exceptional strength and durability, allowing the boom to handle demanding loads up to 8,000 lb without deformation.
- Non‑telescoping 36‑inch design provides a rigid, stable lift platform that reduces sway and simplifies operation, eliminating the need for hydraulic extensions.
- Integrated fork pockets with reinforced safety chain ensure a secure attachment to forklift forks, meeting industry safety standards and preventing accidental disengagement during lifting.
- Dual heavy‑duty lifting hooks each rated for the full 8,000 lb capacity give flexibility for various load shapes and enable precise positioning of heavy items.
- Vestil’s dedicated customer support and optional service contracts provide ongoing assistance, parts availability, and maintenance guidance to keep the boom operating efficiently over its lifespan.
FAQ
What forklift models are compatible with the LM‑EBNT‑8‑36 lift boom?
The LM‑EBNT‑8‑36 is designed to fit most standard 4‑wheel and 3‑wheel forklifts with a rated capacity of 5,000 lb or higher. Compatibility is confirmed by matching the fork width and lift height specifications to the boom’s fork pocket dimensions. For forklifts with unique configurations, Vestil provides optional adapters to ensure a secure fit.
How is the lift boom attached to the forklift and secured?
Attachment begins by aligning the pre‑drilled holes in the boom’s fork pockets with the forklift’s fork tines. The safety chain is then threaded through the designated eyelets and tightened to the specified torque, creating a lock‑in that prevents movement. A final visual inspection of all bolts and the chain tension completes the installation.
Can the lift boom be used outdoors in harsh weather conditions?
Yes. The boom’s steel construction is coated with a corrosion‑resistant paint system that protects against moisture, dust, and temperature extremes. However, it is recommended to perform routine inspections for any signs of wear or coating damage after prolonged exposure to harsh environments.
What maintenance procedures are recommended to ensure long‑term reliability?
Regular maintenance includes visual checks of welds, bolts, and safety chains for signs of fatigue or loosening, as well as lubrication of the hook pins to maintain smooth operation. Operators should also verify that the load does not exceed the rated capacity and that the forklift’s load center remains within safe limits. Following the manufacturer’s maintenance schedule will extend the boom’s service life.
