Description
Product Overview

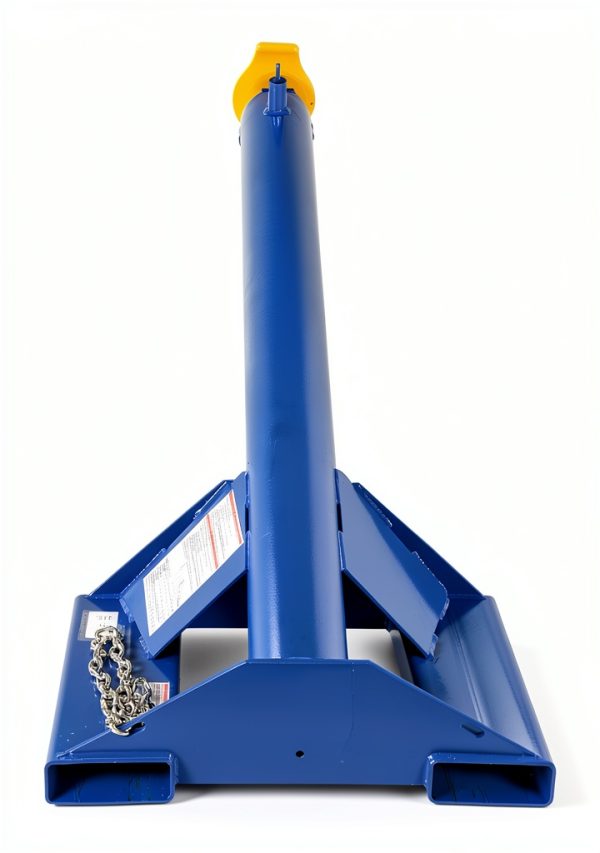

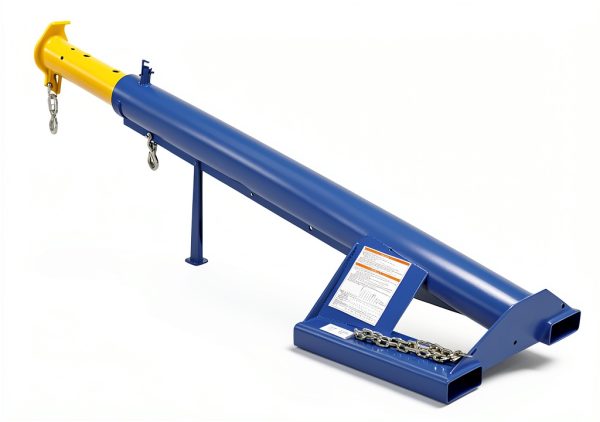

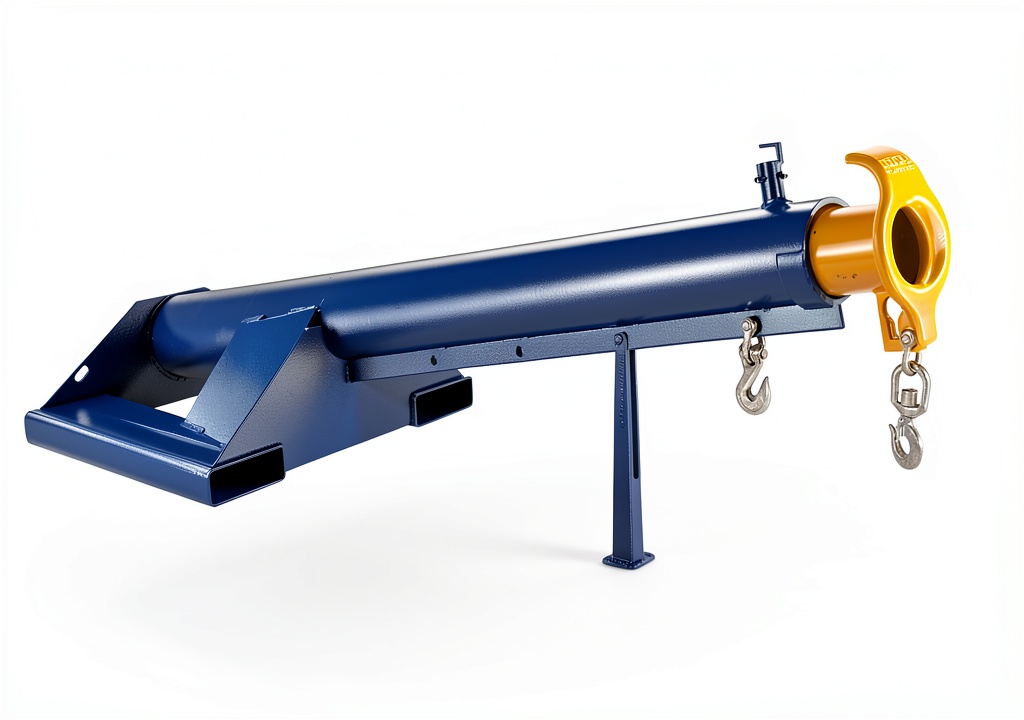

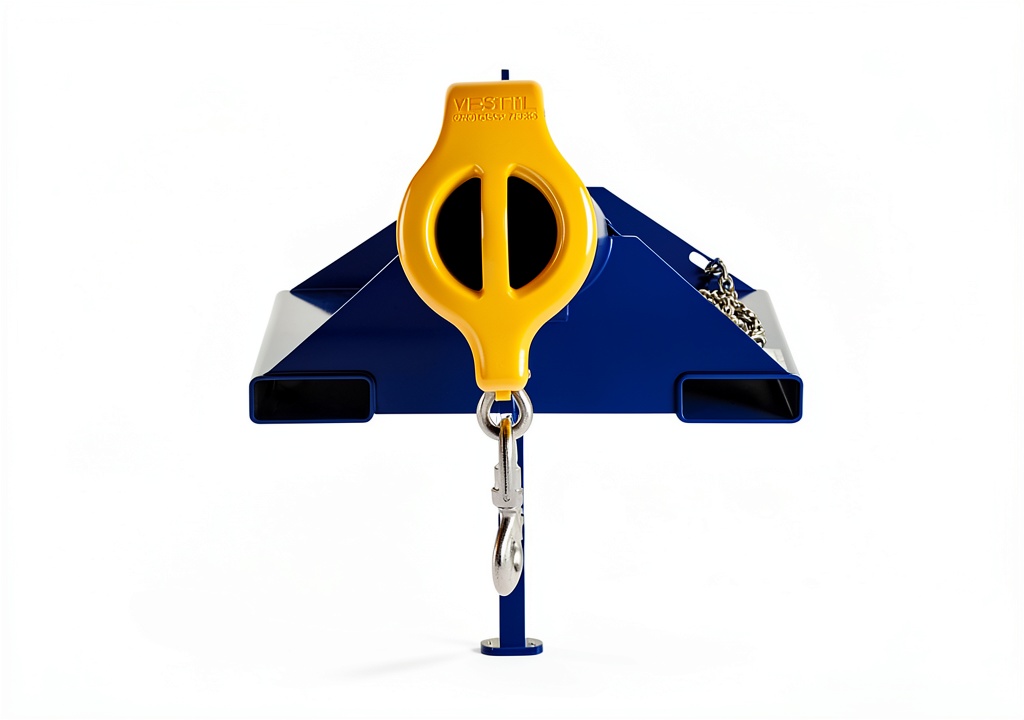

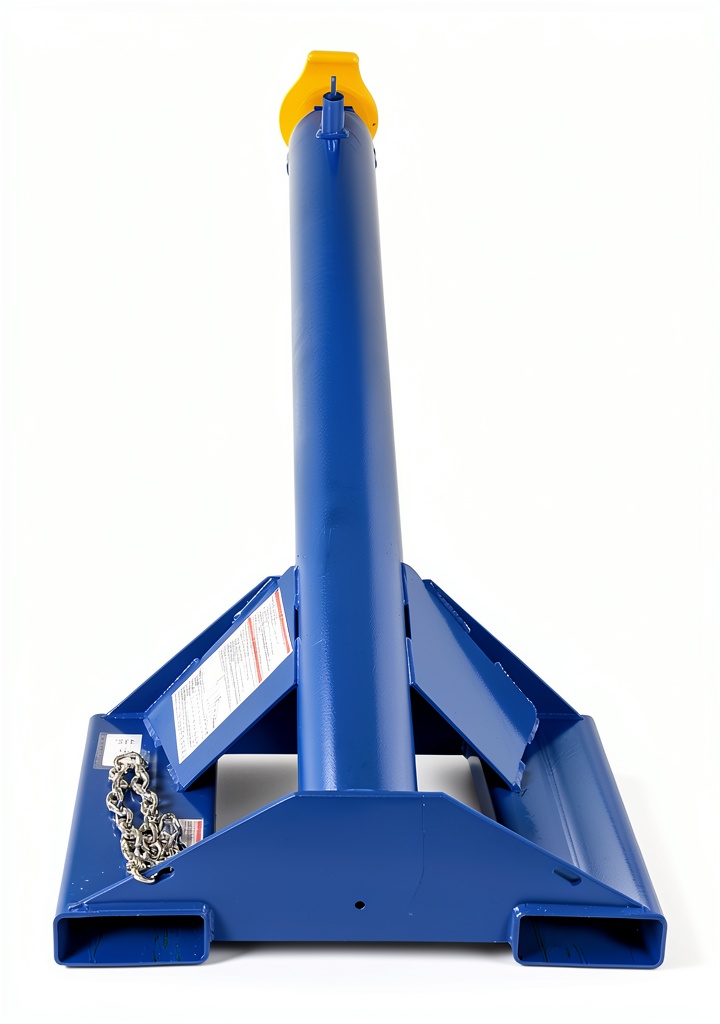

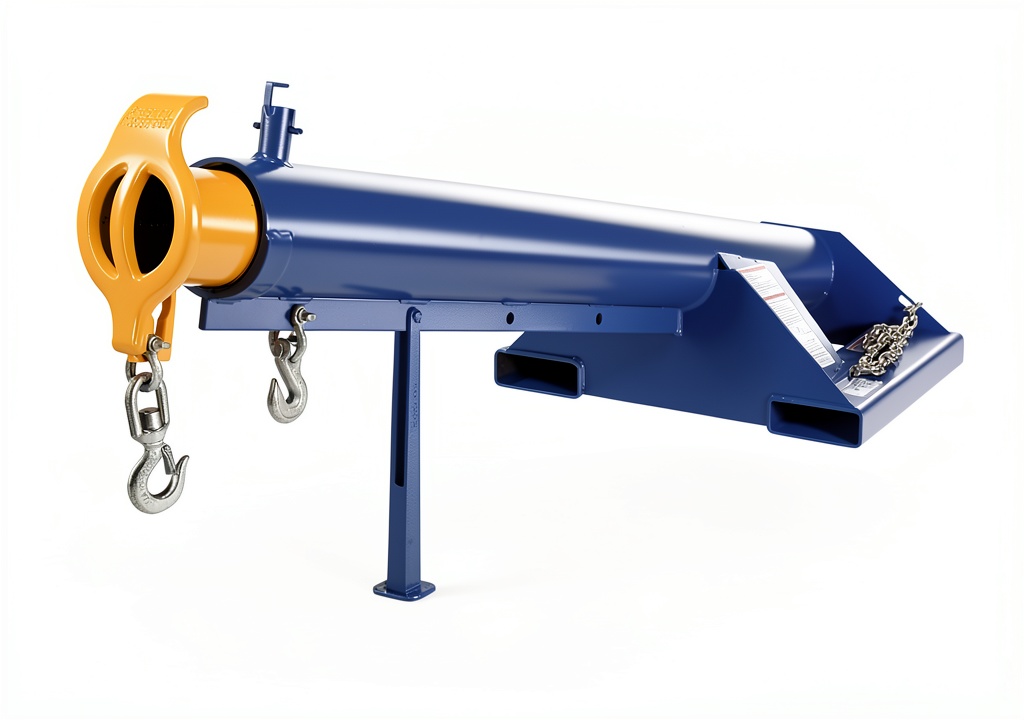

The Vestil LM-F15-4-24 Steel Lift Master Boom is engineered to meet the demanding requirements of modern material‑handling operations. As part of Vestil’s Lift Master series, this boom combines a compact footprint with a high‑strength steel frame, delivering reliable performance in a variety of industrial settings. The model designation LM‑F15‑4‑24 indicates a fixed 24‑inch extension, a 15‑degree lift angle, and a 4,000‑pound load capacity, making it instantly recognizable to purchasing managers and equipment technicians alike.
Measuring 87 × 32 × 33 inches and weighing 372 pounds, the boom is built to fit through standard doorways while still providing a sturdy base for heavy loads. The steel construction is treated with a corrosion‑resistant coating in a distinctive blue‑yellow color scheme that enhances visibility on busy shop floors. The fixed 24‑inch extension is calibrated for precise positioning, and the 15‑degree lift angle allows operators to clear obstacles and achieve optimal load placement without excessive maneuvering.
Safety and ergonomics are integral to the design of the LM‑F15‑4‑24. The boom features reinforced mounting brackets that distribute load stresses evenly across the frame, reducing the risk of fatigue failure during prolonged use. Integrated lift‑assist levers provide smooth operation with minimal effort, while the low‑profile handle ensures a comfortable grip for users of varying heights. All critical dimensions are clearly labeled on the unit, simplifying setup and reducing the chance of installation errors.
The bright blue and yellow finish not only meets industrial safety standards for high‑visibility equipment but also resists scratches and chemical exposure common in manufacturing environments. This dual‑tone coating is applied in a powder‑coat process that bonds tightly to the steel substrate, extending the service life of the boom even under harsh temperature fluctuations. The color contrast also aids in quick visual inspections, allowing maintenance personnel to spot wear or damage at a glance.
The LM‑F15‑4‑24 integrates seamlessly with existing forklift and pallet‑jack platforms, thanks to its universal mounting interface and standardized bolt pattern. Compatibility charts provided by Vestil confirm that the boom can be attached to most mid‑range lift trucks without the need for custom adapters, reducing downtime and simplifying inventory management. When paired with compatible accessories such as fork extensions or load‑leveling devices, the boom’s functionality can be further expanded to meet specialized handling requirements.
Beyond its core mechanical capabilities, the LM‑F15‑4‑24 complies with OSHA and CE safety standards, ensuring that the boom meets internationally recognized requirements for load‑handling equipment. The design incorporates reinforced gusset plates at critical stress points, and the pivot joint is equipped with a lockable safety pin that prevents accidental collapse during operation. Additionally, the boom is tested for a minimum of 10,000 lift cycles to verify its endurance under repetitive use, providing confidence that the product will sustain performance over many years of service.
Usage
Typical usage scenarios for the Lift Master Boom include loading and unloading pallets, positioning heavy machinery components, and elevating bulk materials in warehouses, distribution centers, and manufacturing plants. The 24‑inch fixed extension provides enough reach to clear standard shelving heights while maintaining a compact profile that can be stored on narrow aisles when not in use. Operators appreciate the ability to quickly attach the boom to a forklift and begin work without extensive setup time, which translates into higher throughput and reduced labor costs.
In environments where space is at a premium, the boom’s 87‑inch height and 32‑inch width allow it to be maneuvered through doorways as narrow as 36 inches, making it suitable for retrofitted facilities and older buildings. The 15‑degree lift angle is particularly useful when lifting loads over obstacles such as conveyor belts or low‑lying equipment, providing a safe clearance margin without requiring the operator to reposition the entire vehicle. This flexibility reduces the number of trips needed to move a single load, enhancing overall efficiency.
The ergonomic design of the handle and lift‑assist levers minimizes operator fatigue during prolonged use. The low‑profile grip is positioned at a height that accommodates both shorter and taller users, while the smooth mechanical advantage of the levers reduces the force required to raise a full 4,000‑pound load. This design consideration not only improves productivity but also aligns with occupational safety guidelines that encourage reduced strain and repetitive motion injuries.
Routine inspection is straightforward thanks to the boom’s accessible bolt pattern and clear labeling of critical components. Operators can perform visual inspections of the steel surface, check for wear on the lift‑assist mechanism, and tighten mounting bolts without specialized tools. Vestil recommends a quarterly lubrication schedule using a light oil to preserve smooth operation, and the powder‑coat finish simplifies cleaning by repelling dust and grime. Proper upkeep ensures the boom remains reliable for years of heavy‑duty service.
Field technicians find the LM‑F15‑4‑24 easy to service thanks to its modular construction, which allows individual components such as the lift‑assist levers or mounting brackets to be removed and replaced without disassembling the entire boom. The clear labeling of torque specifications and the inclusion of a basic tool kit in the packaging further simplify routine upkeep. Training sessions offered by Vestil cover proper lifting techniques, load‑center calculations, and emergency shutdown procedures, ensuring that operators are equipped with the knowledge to use the equipment safely and efficiently.
Why Choose Us
Vestil has built a reputation over more than four decades for delivering durable material‑handling solutions that meet rigorous industrial standards. The company’s engineering team combines practical field experience with advanced design software to create products that balance strength, ease of use, and cost‑effectiveness. By choosing the LM‑F15‑4‑24, customers benefit from a proven brand that prioritizes reliability and long‑term performance, reducing the total cost of ownership compared with generic alternatives.
Quality control at Vestil includes multiple stages of testing, from material tensile strength verification to full‑load cycle endurance trials. Each boom undergoes a rigorous inspection process that checks for dimensional accuracy, weld integrity, and coating uniformity before it leaves the factory. This systematic approach ensures that every unit delivered meets the specifications outlined in the product data sheet, giving end users confidence that the equipment will perform as advertised.
The steel used in the LM‑F15‑4‑24 is sourced from certified suppliers and undergoes a heat‑treatment process that enhances its yield strength and resistance to fatigue. Combined with a powder‑coat finish that meets ISO 12944 standards for corrosion protection, the boom is built to withstand the harsh conditions of busy shop floors, including exposure to oils, solvents, and temperature extremes. This durability translates into a longer service life and fewer replacement cycles for businesses.
Vestil’s commitment to customer support extends beyond the point of sale. Buyers receive access to a dedicated technical assistance line, detailed installation manuals, and optional training sessions that cover safe operation and maintenance best practices. In addition, the company offers a comprehensive warranty that covers material defects for three years, providing peace of mind and reinforcing the value proposition of the Lift Master Boom.
Vestil also emphasizes environmental responsibility by selecting steel sourced from recycled materials and employing a low‑VOC powder‑coat process that minimizes emissions during production. The company’s manufacturing facilities are certified under ISO 14001, demonstrating a commitment to sustainable practices and waste reduction. Customers who prioritize green procurement can therefore align their purchasing decisions with corporate sustainability goals, knowing that the Lift Master Boom not only delivers performance but also adheres to eco‑friendly standards throughout its lifecycle.
Vestil’s global distribution network ensures that customers worldwide can obtain the LM‑F15‑4‑24 with fast shipping and localized support. Regional service centers stock spare parts and provide on‑site assistance, reducing downtime for businesses operating in remote or high‑throughput environments. The company’s commitment to continuous improvement means that product designs are regularly reviewed and updated based on field feedback, guaranteeing that the Lift Master Boom remains at the forefront of material‑handling technology.
Key Features
- High‑strength steel frame with powder‑coat finish delivers exceptional durability and corrosion resistance for long‑term use in demanding industrial environments. The robust construction also supports heavy loads without deformation, ensuring consistent performance even after repeated cycles.
- Fixed 24‑inch extension and 15° lift angle provide precise positioning, allowing operators to clear obstacles and place loads accurately without excessive maneuvering. This capability reduces the number of trips required per task, improving overall workflow efficiency.
- Compact dimensions (87 × 32 × 33 in) and 372‑lb weight enable easy transport through standard doorways and storage on narrow aisles, maximizing space utilization in crowded facilities. The design also allows quick attachment to a variety of forklift models without the need for custom adapters.
- Ergonomic low‑profile handle and lift‑assist levers reduce operator fatigue, providing a comfortable grip for users of different heights and minimizing the force required to lift the maximum 4,000‑lb load.
- Vestil offers a three‑year warranty, dedicated technical support, and optional training resources, ensuring reliable after‑sales service and helping customers maintain optimal performance throughout the product’s lifespan.
FAQ
What is the maximum load capacity and how is it measured?
The LM‑F15‑4‑24 is rated for a maximum static load of 4,000 pounds when the boom is positioned at its full 24‑inch extension and a 15‑degree lift angle. This rating is based on ASTM‑standard testing that evaluates the steel’s tensile strength, weld integrity, and overall structural stability under controlled conditions. Users must ensure that the load is evenly distributed and that the center of gravity remains within the specified limits to avoid tipping or over‑stress. Dynamic loads, such as those generated during rapid lifting or sudden impacts, should be kept well below the static rating to provide a safety margin. It is also recommended to consult the operator’s manual for specific load‑distribution diagrams and to adhere to any local occupational safety regulations when operating the boom at its maximum capacity.
Can the boom be mounted on any forklift model?
The LM‑F15‑4‑24 is designed with a universal mounting interface that matches the standard bolt pattern used on most mid‑range forklift models. Vestil provides a detailed compatibility chart that lists approved makes and models, including popular brands such as Toyota, Hyster, and Crown. For most applications, the boom can be installed directly onto the forklift’s existing fork carriage without the need for custom adapters or additional hardware. In cases where the forklift’s fork spacing differs slightly from the standard, a set of optional mounting brackets is available to fine‑tune the fit. Installation typically takes less than 30 minutes when following the step‑by‑step guide included in the product package, allowing operators to return to work quickly and safely.
How often should the boom be inspected and maintained?
Regular inspection and maintenance are essential to keep the LM‑F15‑4‑24 operating safely and efficiently. Vestil recommends a visual inspection at least once per month, checking the steel surface for signs of corrosion, cracks, or deformation, and verifying that all bolts remain tightened to the specified torque values. The lift‑assist levers should be lubricated with a light oil every 90 days to maintain smooth operation and prevent wear. Additionally, the powder‑coat finish should be cleaned with a mild detergent and a soft cloth to remove dust and oil residues that could obscure potential damage. For high‑usage environments, a more frequent maintenance schedule may be advisable, and any identified issues should be addressed promptly by qualified service personnel.
What warranty and support does Vestil provide for this product?
Vestil backs the LM‑F15‑4‑24 with a three‑year limited warranty that covers any defects in material or workmanship under normal use conditions. The warranty period begins on the date of purchase and includes free replacement of faulty components, as well as technical assistance for troubleshooting and repair guidance. Customers can contact Vestil’s dedicated support line by phone or email, and the company also offers an online portal where users can download manuals, view instructional videos, and submit service requests. This comprehensive after‑sales support ensures that buyers receive prompt help and that the boom remains a reliable asset throughout its service life.
Reviews
There are no reviews yet.
